A&E SPECIFICATIONS

• The rackmount utility drawer shall be  fully-welded 16-gauge steel with smooth black powder epoxy finish. The 19"W x 15.07"D x ____ drawer shall feature ball-bearing slides, an integral handle and a plastic bushing in the rear for wire pass-through. Load capacity shall be 50 lbs. The drawer shall include a key lock.

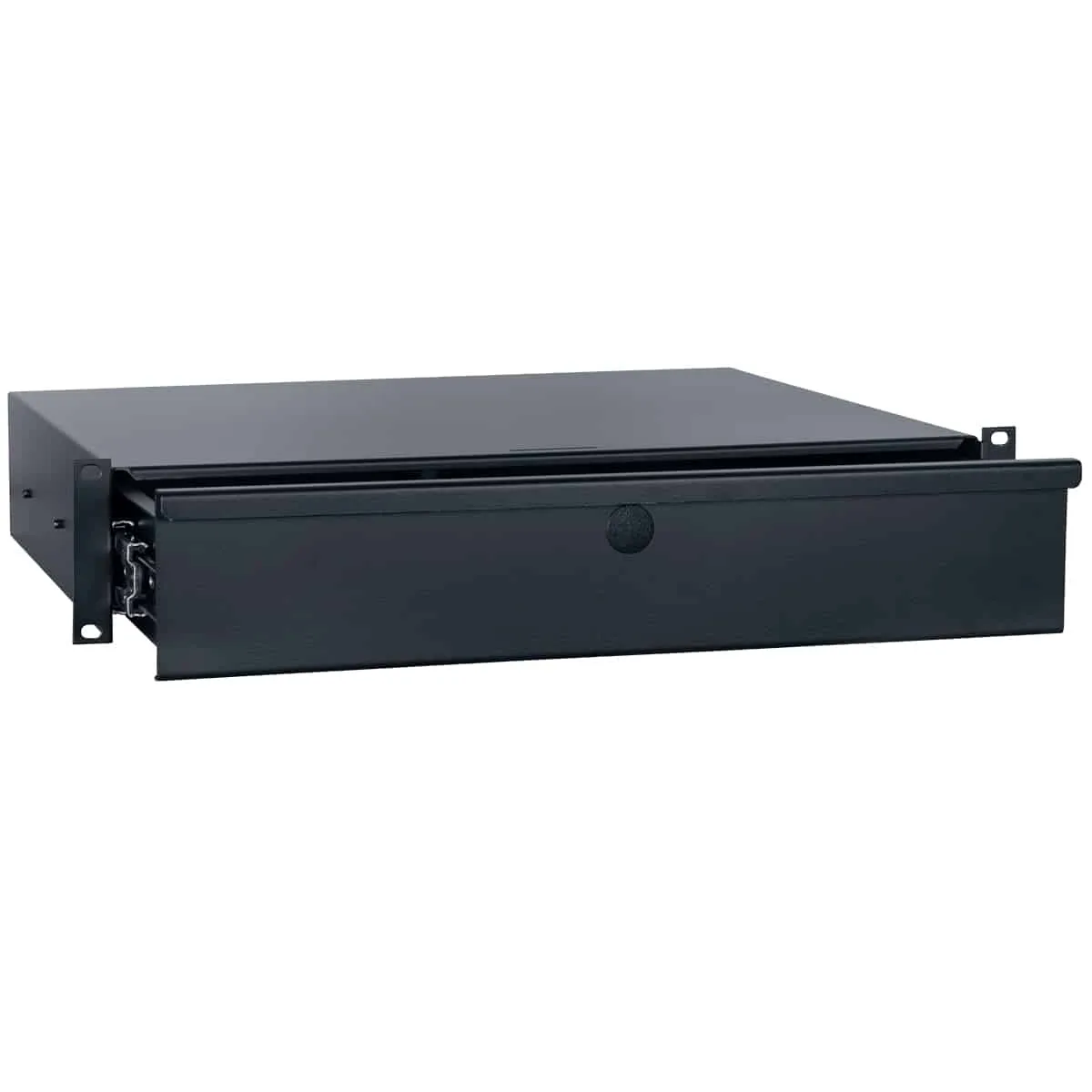

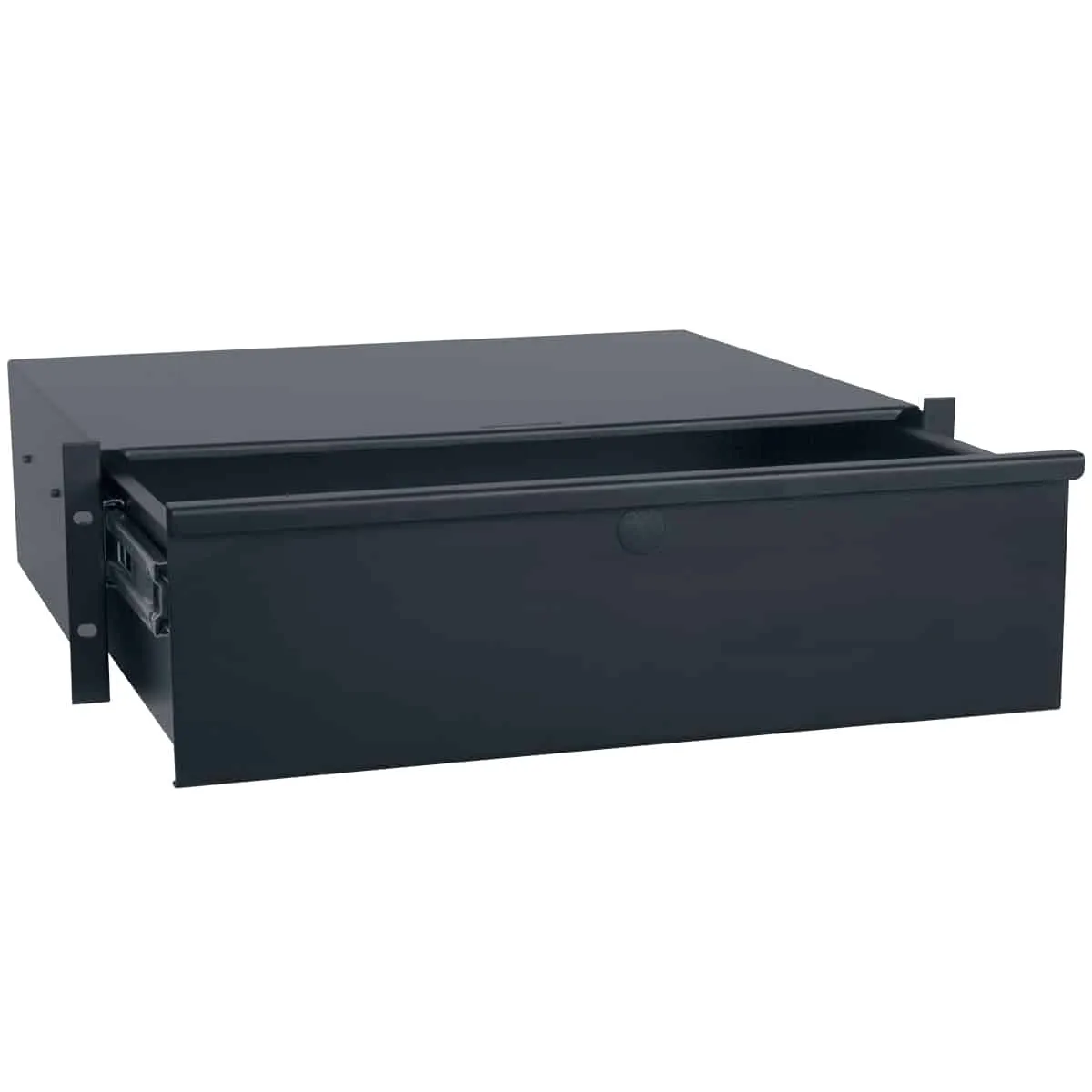

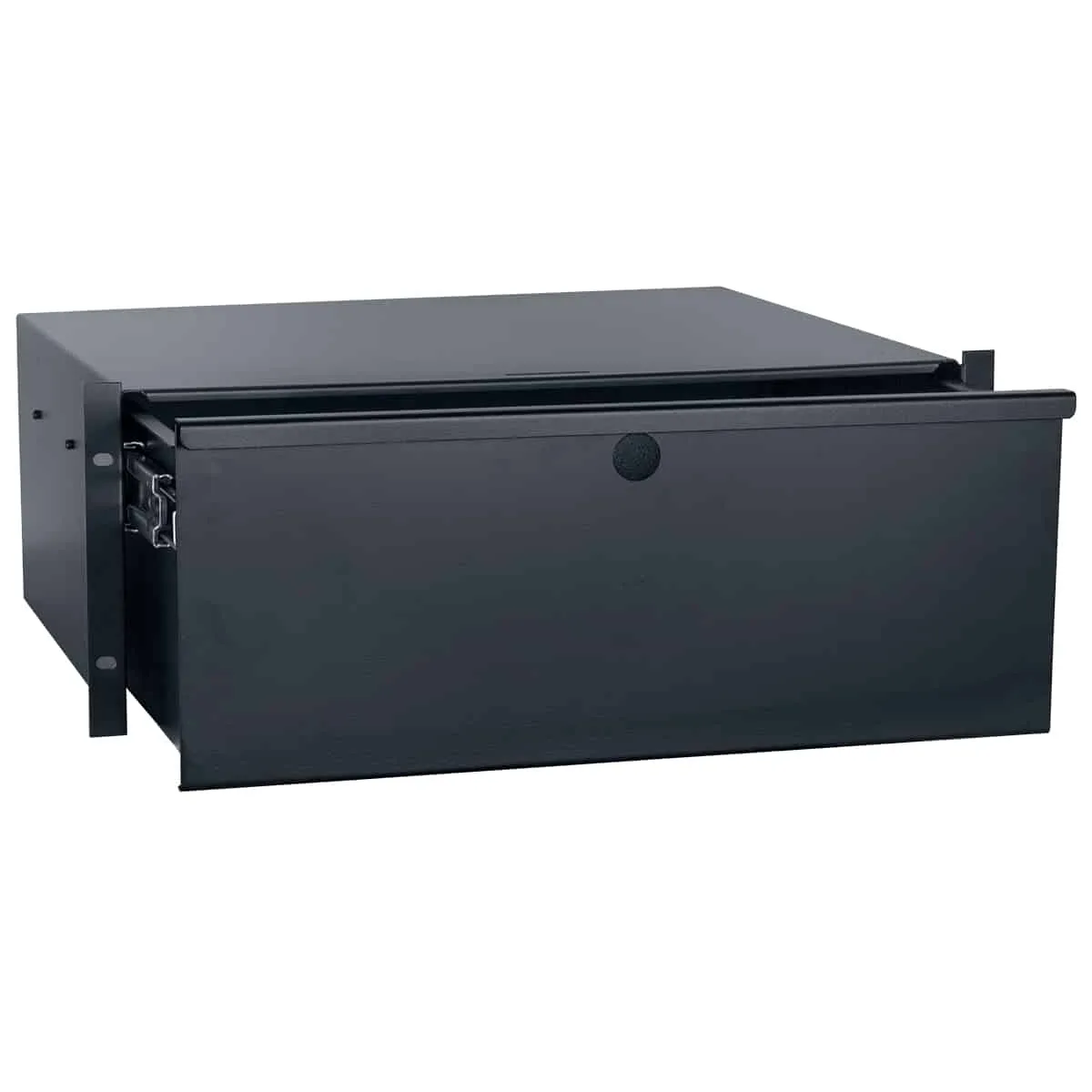

Rack mount utility drawer for 19 inch equipment racks features a rear bushing for cable pass-through. This unit includes a key lock.

FEATURES

• Rack Space:  2U, 3U, or 4U
• Width:  19.00 in.
• Depth:  15.07 in. (with handle)
• 16-gauge steel
• Smooth black finish

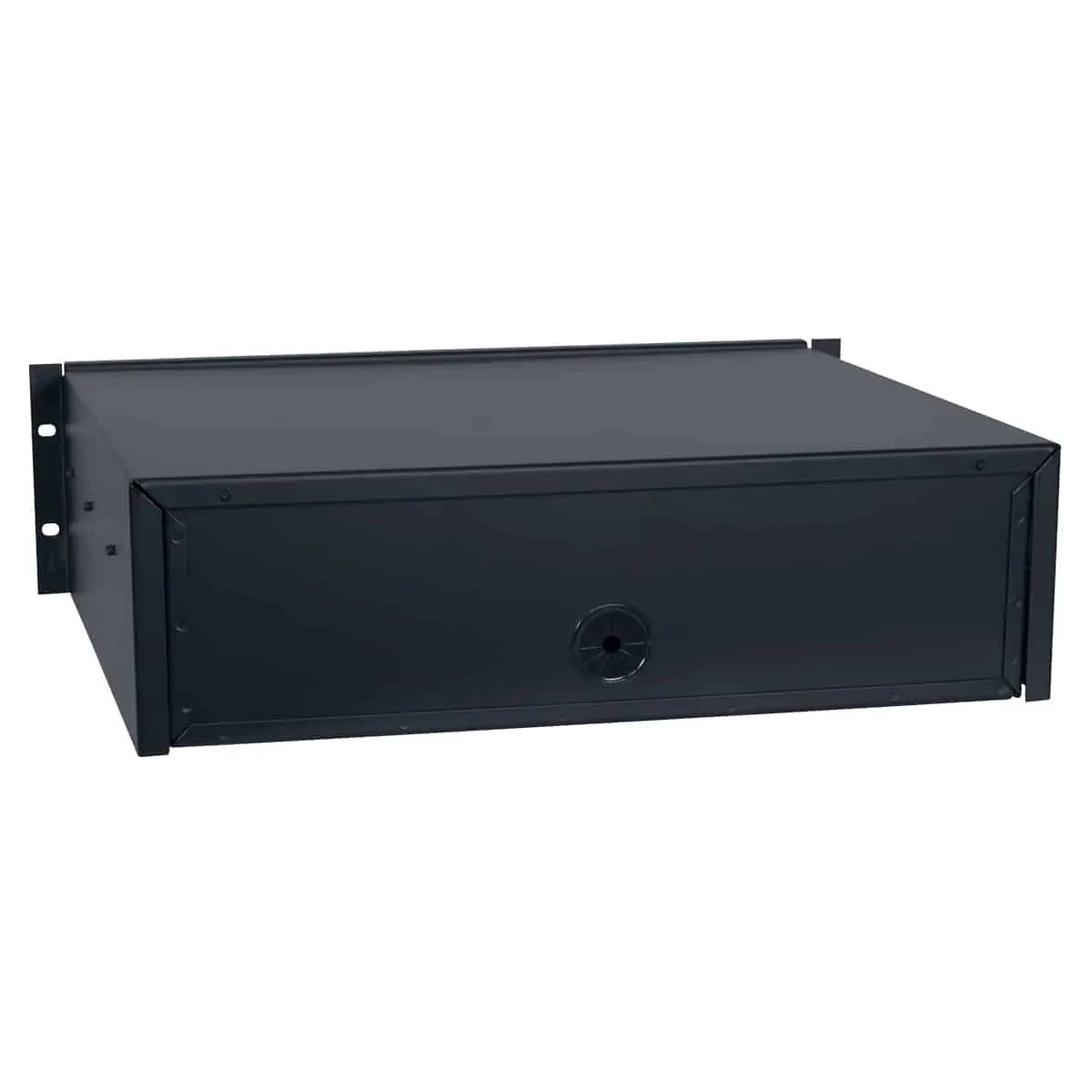

• Rear bushing

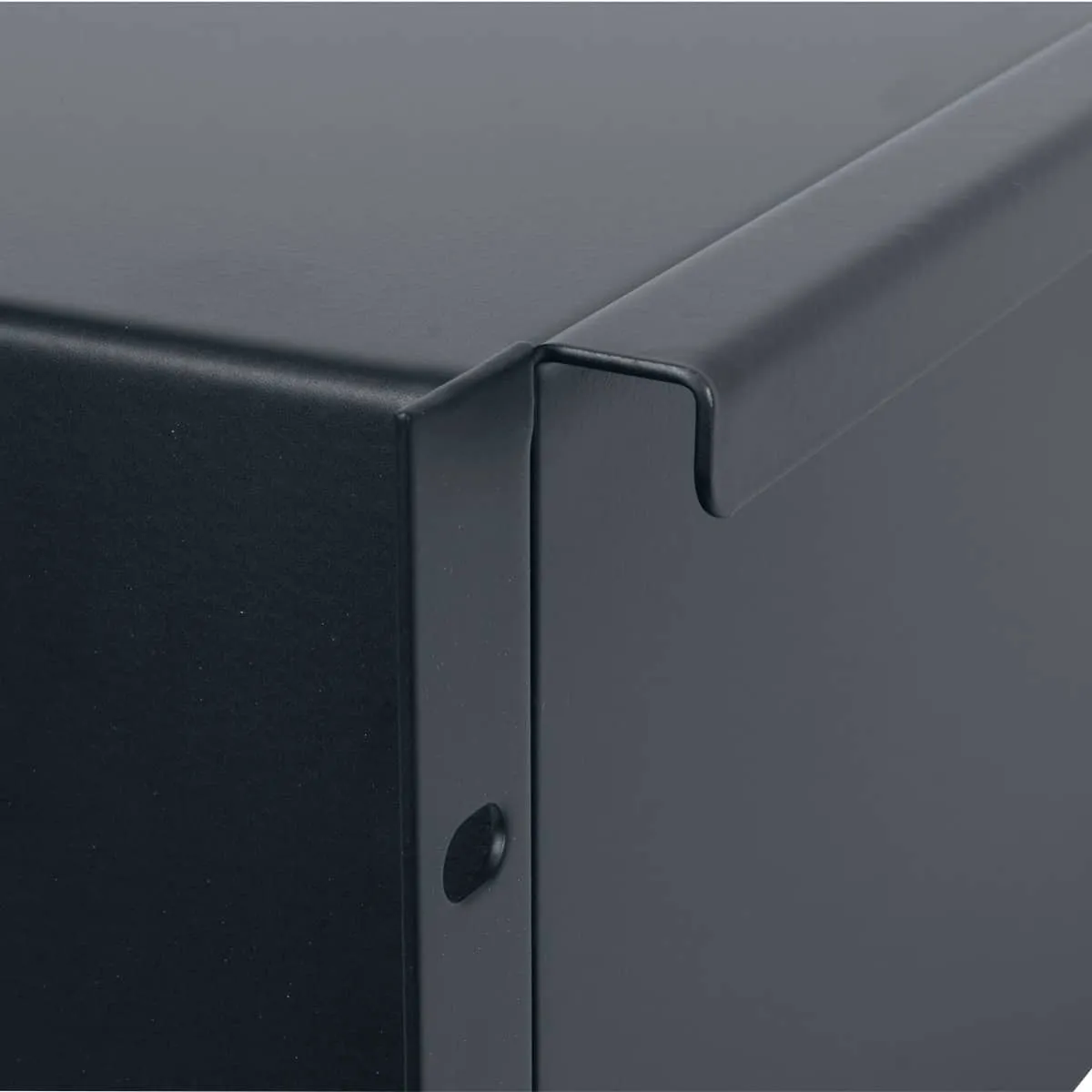

• Integral handle
• Load capacity 50 lbs.
• Key lock

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

TECHNICAL DOWNLOADS

• 2U drawer:

• 3U drawer:

• 4U drawer:

OPTIONS (order separately)

• DFI Series:  Thick die-cut foam with pick-and-pull squares for custom nests to hold sensitive electronics
• CDM:  Non-slip perforated mat liner
